In-Depth Analysis of MPO/MTP Fiber Polarity: Ensuring Reliable High-Speed Optical Networks

As data centers and high-speed optical communication networks evolve, MPO/MTP multi-fiber connectors have become essential for 40G/100G/400G deployments due to their high density and efficiency. However, polarity misconfiguration is a common cause of link failures. This article provides a comprehensive analysis of MPO/MTP polarity, covering technical principles, standards, applications, and best practices to ensure optimal network performance.

---

1. Why is Polarity Critical?

In traditional duplex fiber (LC/SC) connections, ensuring Tx (transmit) connects to Rx (receive) is straightforward. However, MPO/MTP cables contain 12, 24, or more fibers, making correct fiber sequencing crucial. Examples:

• 40G SR4 uses 8 fibers (4Tx + 4Rx) in a 12-fiber MPO—incorrect polarity disrupts communication.

• 100G SR4 requires precise alignment across 24 fibers (or 2×12 fibers).

Core Function of Polarity: Ensures Tx signals correctly reach Rx ports in multi-fiber environments.

---

2. The Three MPO/MTP Polarity Standards

Per TIA-568-C.3, MPO/MTP polarity is classified into Type A, Type B, and Type C, differing in fiber sequencing and connector types (male/female).

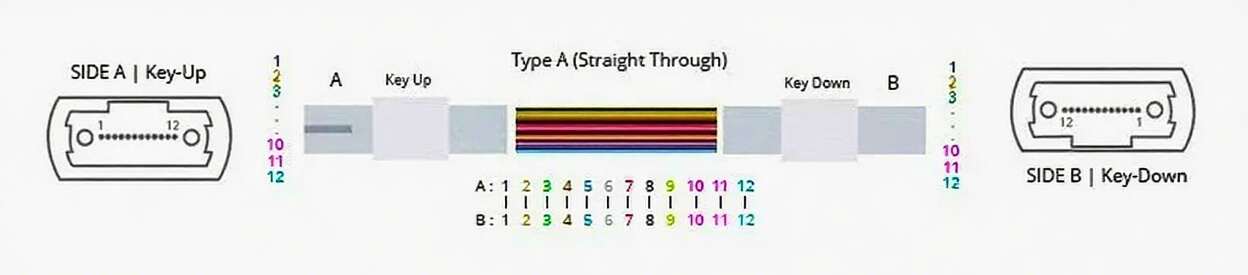

1. Type A (Straight-Through)

• Fiber Sequence: Reversed at each end (1↔12, 2↔11, …, 12↔1).

• Connectors: Both ends male (Male-Male) or female (Female-Female).

• Applications:

  • 40G SR4 (8 fibers active in a 12-fiber MPO).

  • Direct connections without cross-connect.

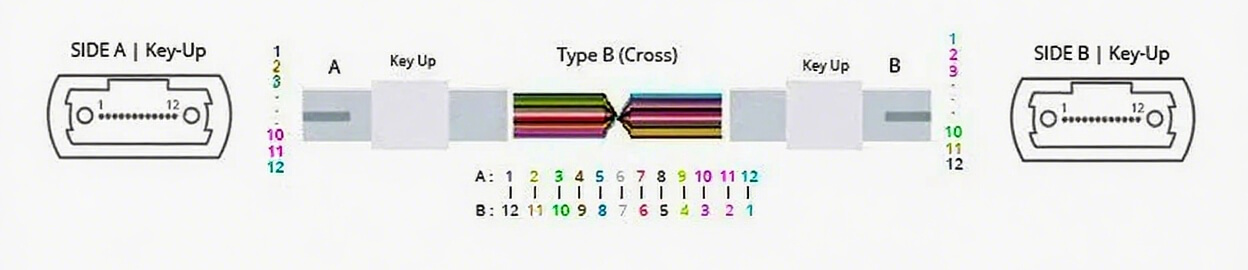

2. Type B (Crossed)

• Fiber Sequence: Same at both ends (1↔1, 2↔2, …, 12↔12).

• Connectors: Male on one end, female on the other (Male-Female).

• Applications:

  • 100G SR4 (24-fiber MPO or 2×12-fiber MPO).

  • Structured cabling with patch panels.

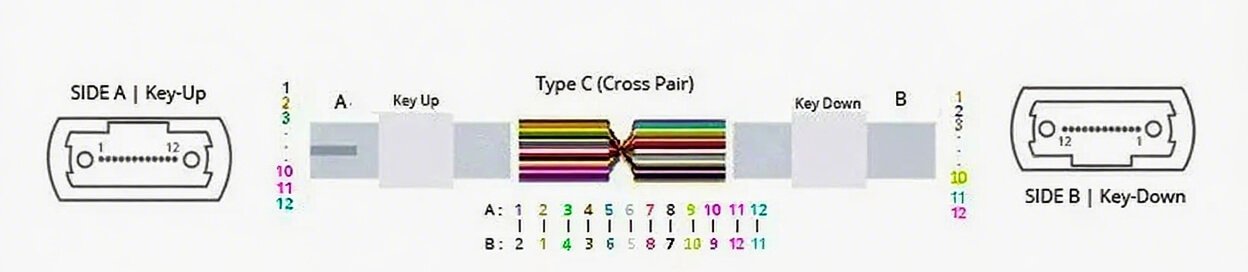

3. Type C (Pairwise Crossed)

• Fiber Sequence: Adjacent fibers swapped (1↔2, 2↔1, 3↔4, 4↔3…).

• Connectors: Male-Male or Female-Female.

• Applications:

  • Specialized duplex configurations.

  • Rarely used in standard deployments.

---

3. Selecting the Right Polarity

1. By Network Standard

2. Connector Gender Rules

• Male (Pins): Aligns with female connectors.

• Female (No Pins): Accepts male connectors.

• Rule: Type B requires Male-Female; Type A/C can be Male-Male or Female-Female.

3. Key Orientation Impact

MPO/MTP key position affects fiber numbering:

• Key Up: Fiber #1 is leftmost.

• Key Down: Fiber #1 is rightmost (reversed).

---

4. Troubleshooting Polarity Errors

1. Common Symptoms

• Optical module alarms (Tx/Rx failure).

• Link degradation or complete failure.

2. Diagnosis Steps

1. Verify Polarity Type: Check if Type A/B/C is correctly used.

2. Inspect Fiber Sequence: Use an MPO microscope or tester.

3. Use Polarity Conversion Modules: Patch panels with Type A↔Type B adapters.

3. Best Practices

• Labeling: Color-code cables (e.g., orange = Type B).

• Documentation: Maintain polarity records in network diagrams.

---

5. Future Trends in Polarity Management

With 800G/1.6T adoption, higher-density MPO/MTP (e.g., 32/64 fibers) will demand



Conclusion

MPO/MTP polarity is foundational for high-speed optical networks. Proper selection of Type A/B/C, correct connector gender matching, and key orientation awareness are essential for reliable deployments. As networks scale, robust polarity management will remain critical for ensuring seamless Tx→Rx alignment.



Quick MPO Polarity Reference
