MT Ferrule: The Core Technology of High-Density Fiber Optic Connectivity

MPO/MTP / By

I. Introduction to MT Ferrules

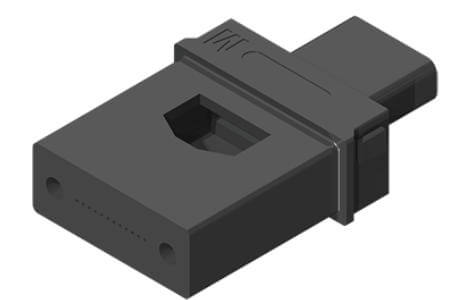

The MT ferrule is the core component of high-density fiber optic connectors such as MPO/MTP. It employs a precision multi-fiber alignment design, integrating multiple fiber channels (e.g., 8, 12, 16, or 24 fibers) into a compact ferrule. Its key advantage lies in the use of precision alignment guide pin holes (guide pins) to ensure accurate alignment of multiple fibers



The MPO (Multi-fiber Push-On) connector is a high-density interconnect solution based on MT ferrule technology. The MTP® connector, developed by US Conec, represents an optimized version of MPO with enhanced mechanical performance, mating cycles, and optical specifications, making it the mainstream choice for high-speed data center interconnects.

II. How MT Ferrules Enable High-Density, High-Speed Transmission

(1) Multi-Fiber Parallel Architecture

Traditional single/dual-fiber connectors (e.g., LC, SC) connect only 1-2 fibers per port, while MT ferrules integrate multiple fibers (e.g., 12 or 24) within the same or smaller footprint, significantly improving bandwidth efficiency through parallel optical transmission.

(2) Parallel Optics Technology

To meet 40G/100G/400G+ requirements in data centers, optical communication has shifted from serial to parallel transmission. MT ferrules enable multi-channel synchronous data transfer:

  • A 12-fiber MPO cable supports 4×25Gbps channels for 100G transmission

  • 24-fiber MPO configurations enable 400G (8×50Gbps) and beyond

(3) Space and Cable Management Optimization

A single MPO trunk cable can replace multiple single-fiber jumpers, reducing cable volume by up to 90%, simplifying management complexity, and improving rack space utilization and thermal airflow.

III. Critical Roles in Data Centers

(1) Addressing Bandwidth Demands

With cloud computing, AI, and 5G driving exponential traffic growth, MPO/MTP connectors with MT ferrules have become the standard interface for 40G/100G/400G optical modules.

(2) Modular Rapid Deployment

Pre-terminated MPO/MTP solutions support “plug-and-play” installation, reducing deployment time by 60% compared to field termination.

(3) High-Density Advantages

In server racks and optical switches, MPO cabling reduces cable clutter by 90%, optimizing airflow and cooling efficiency.

IV. Challenges and Technical Considerations

(1) Endface Cleaning & Inspection

Contamination on multi-fiber endfaces affects all channels simultaneously. Professional tools (fiber microscopes, cleaning pens) are mandatory for maintenance.

(2) Polarity Management

MPO connectors must comply with TIA-568 A/B/C polarity standards. Key-up/key-down designs and polarity-reversed cables prevent channel mismatches.

(3) Loss Control

Multi-fiber connections introduce additional insertion loss (IL) and return loss (RL). Ultra-precision MT ferrules (±0.5μm tolerance) and LL/ULL-grade MTP connectors are essential for high-performance links.

V. MT Ferrule Types and Technological Evolution

(1) Fiber Count Classification

  • Low-count (<16 fibers): MT-RJ (2/4 fibers) for space-constrained FTTA access (4.4×2.5mm footprint)

  • Mainstream (16-24 fibers): 65% global market share, 0.25mm fiber pitch, supports 100G/400G standards

  • High-density (>24 fibers): 32/48-fiber for 1.6T CPO applications, requiring ±0.5μm guide pins

(2) Material Technologies

  • Thermoplastic (PPS): T&S’s annealed PPS ferrules show <0.1% deformation, compliant with IEC 61755-3-31B for 400G

  • Ceramic: Three-circle Group dominates 70% market share with high mechanical strength but higher cost

(3) Connector Standards

  • MPO: IEC-61754-7 standard, PC/APC endfaces (APC offers <-60dB RL)

  • MTP®: US Conec’s patented elliptical guide pins and floating ferrule design extends mating cycles to 500+

VI. Selection Criteria and Key Parameters

(1) Application-Driven Fiber Count

Count Applications Pros/Cons
<16 5G fronthaul, enterprise LAN Cost-effective, RJ-45 compatible
16-24 Data center 400G SR8 Optimal density-loss balance
>24 1.6T CPO engines Future-proof but challenging cleaning

(2) Performance Priorities

  • Loss Grade: Standard (IL<0.5dB), LL (<0.3dB), ULL (<0.2dB)

  • Endface Polish: PC (multimode) vs APC (singlemode, <-60dB RL)

  • Environment: Annealed PPS (-40°C~85°C) or ceramic for thermal stability

(3) Vendor Landscape

  • Global Leaders: US Conec (59% share), Sumitomo (30% premium)

  • Domestic Alternatives: Three-circle (ceramic), T&S (PPS) with cost advantages

  • Compliance: EIA/TIA-604-5 (FOCIS 5) for NA, RoHS for EU

(4) Maintenance Design

  • Polarity: Keyed designs for A/B/C polarity switching

  • Cleaning: Female (F-type) ferrules require dry-cleaning tools (e.g., OPTIPOP)

Conclusion

As the “heart” of MPO/MTP connectors, MT ferrules empower next-gen optical infrastructure through:

  • Efficiency: Parallel transmission breaks single-fiber bandwidth barriers

  • Density: 90% space savings versus discrete fiber management

  • Scalability: Ready for 800G/1.6T evolution

With global IP traffic projected to grow at 26% CAGR, MT ferrule technology will continue driving the performance-cost optimization of optical networks.
