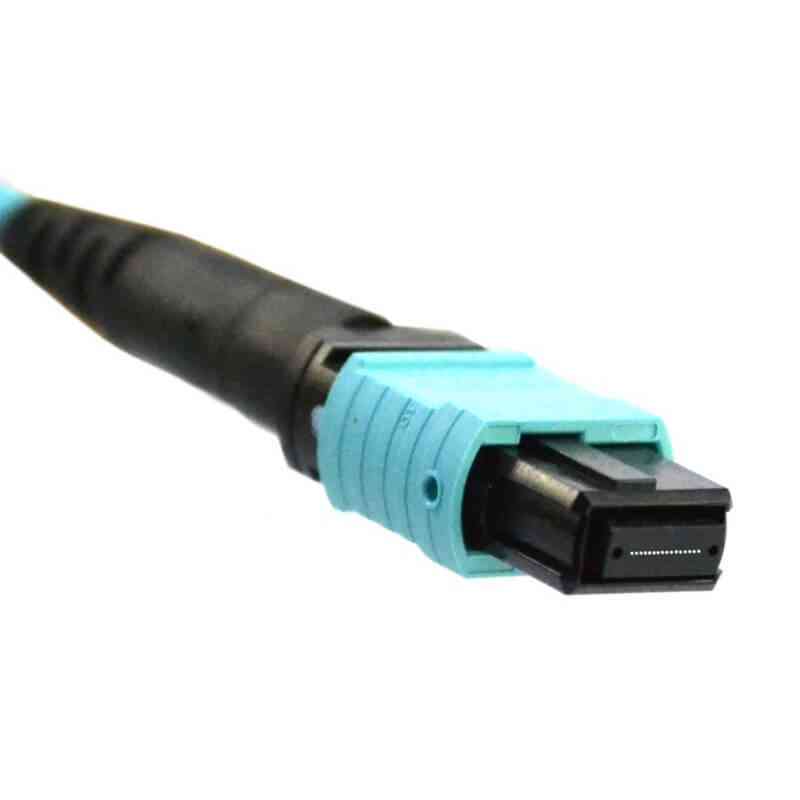

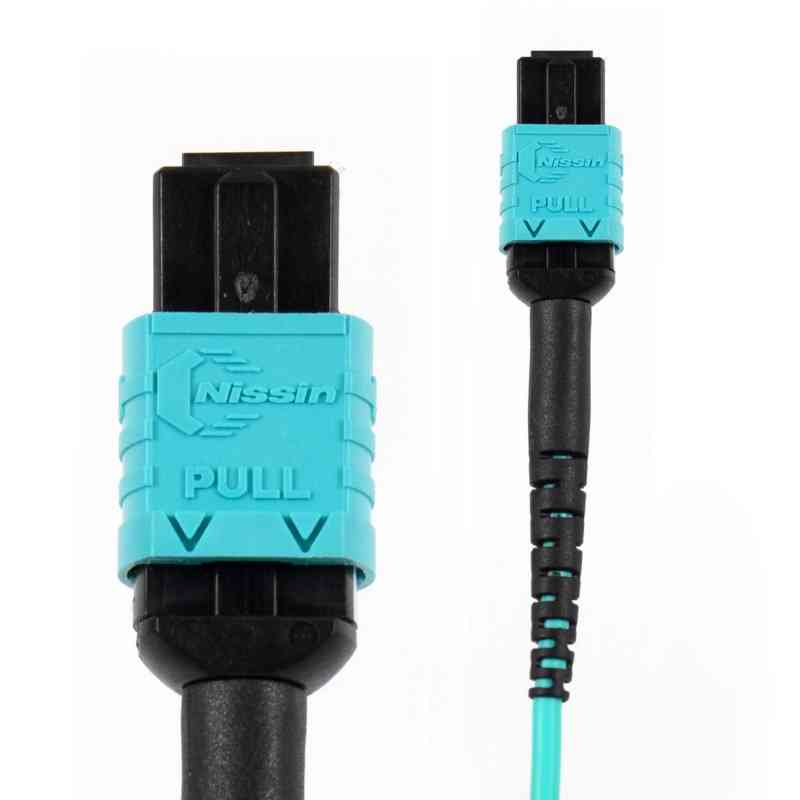

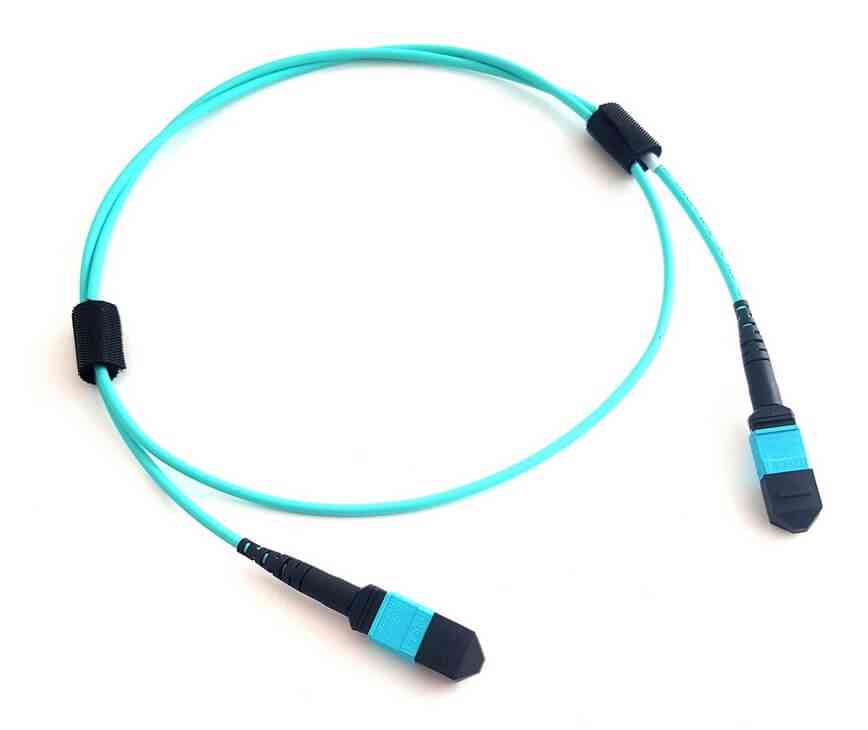

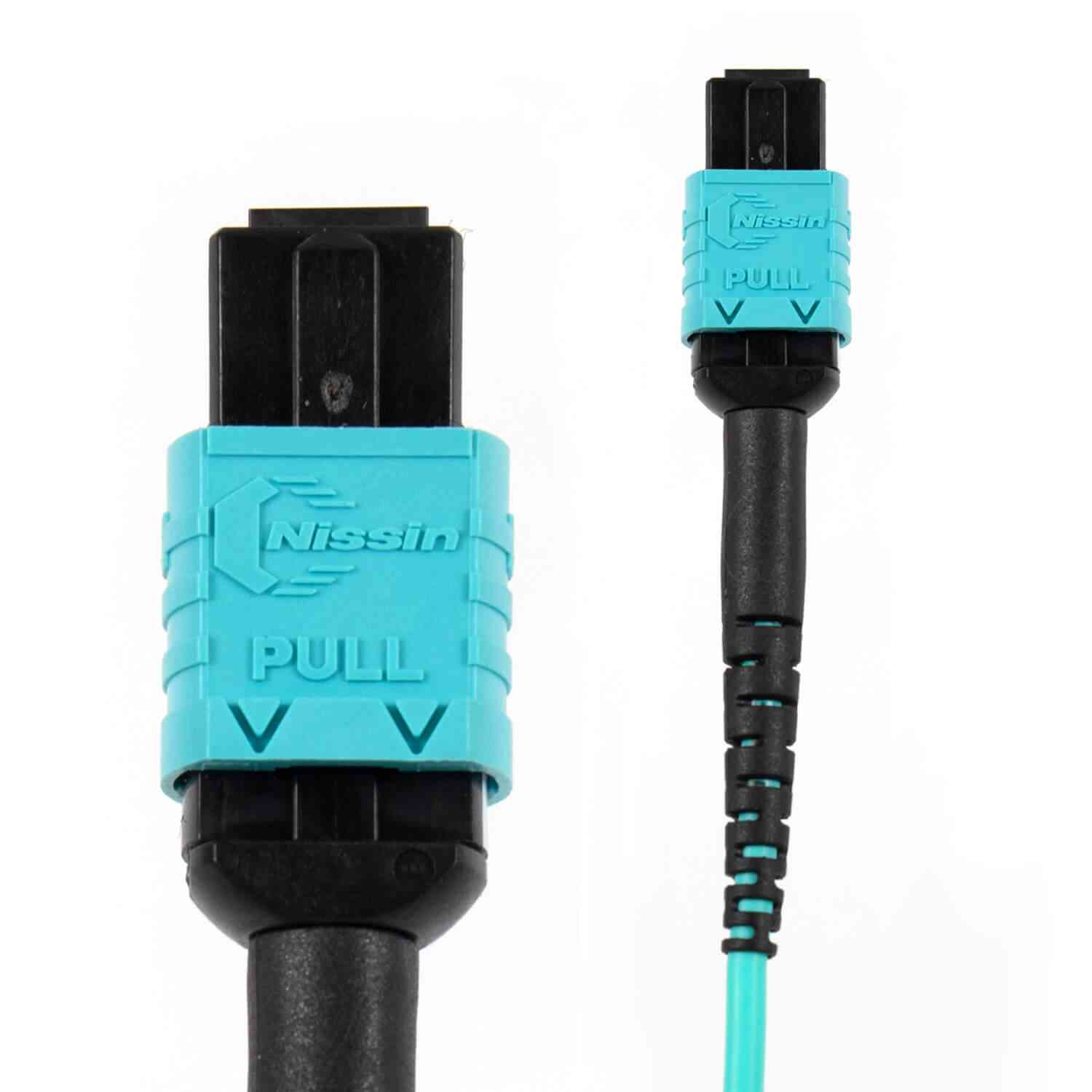

MPO to MPO OM3 Female，16 Fiber Optical Fiber Cable Type B

Features:

• High speed and high density MTP to MTP patch cable, (MTP FEMALE Connector without PIN). Low insertion loss and back reflection loss process
• MMF(50/125um), OM3 10G standard, LSZH sheet, 16-core fibers cable, constructed with TYPE B (Chanel 1 to Chanel 16)
• IL at 850nm 0.85 dB; Common configuration for connecting MTP cassettes and QSFP+ Transceivers
• High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards
• The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies

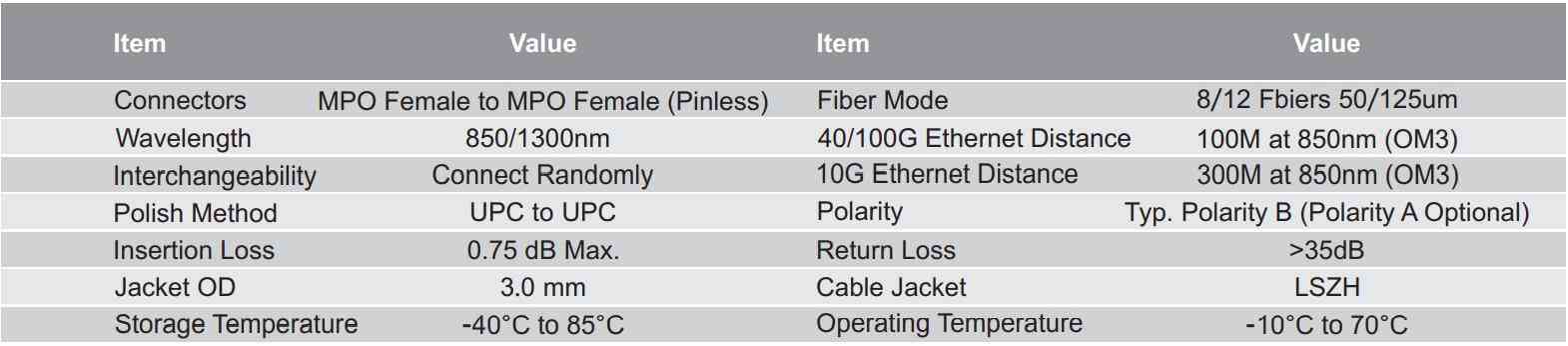

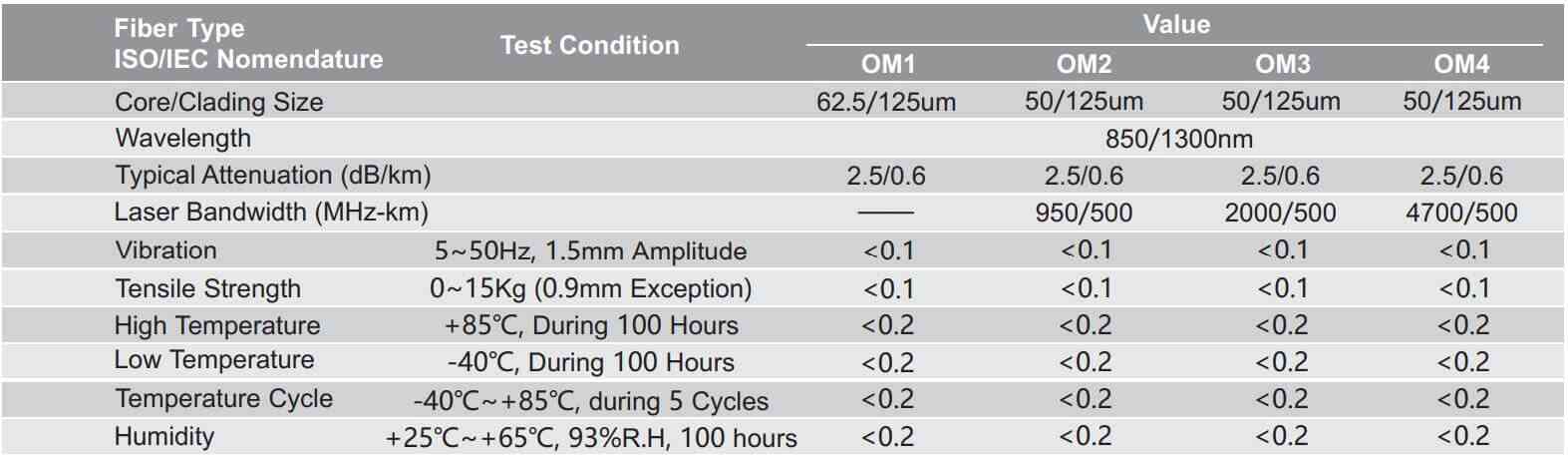

Specification

Connectivity Solutions

Certification
